Level Gauge

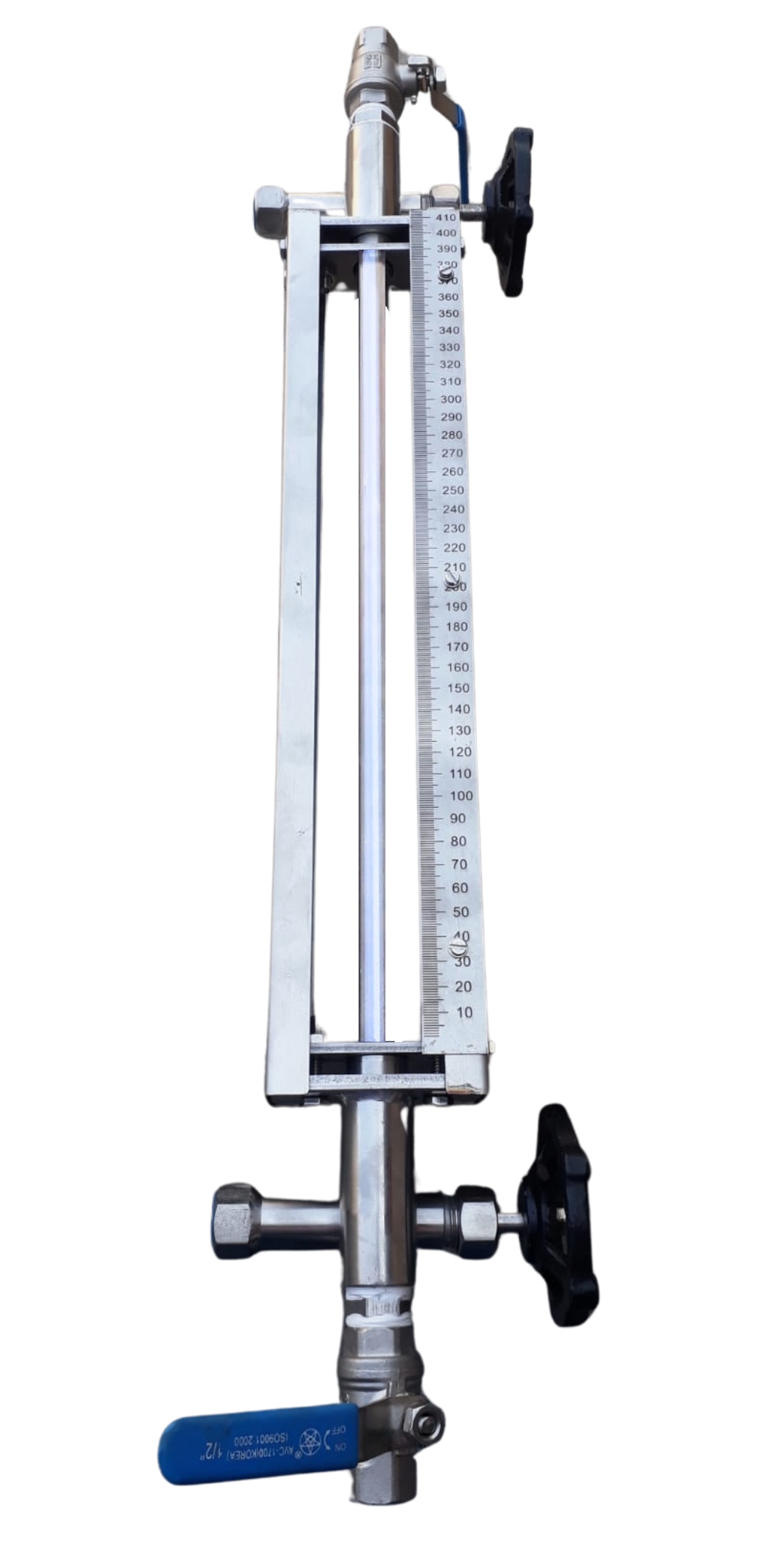

Tubular Level Gauge Series TLG22
Tubular Level gauge for visual liquid level observation is very common in process industry. It is a simple and reliable device for direct reading in atmospheric or pressurized tank applications
It is mounted parallel, along the side of tank. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local liquid indication.
SPECIFICATION
| Connection | Screwed & Flanged ASA 150# |
| End Fitting | CS/S.S.304/S.S 316/P.P |
| Protective Channel | C.S.Rectangle / S.S.304/S.S 316 |
| Glass Tube | Borosilicate 19/16 /25 mm OD |
| Packing | Teflon |
| Valve | C.S./S.S.304/S.S. 316/P.P. |
| Press Rating | Max. 10 Kg/Cm² |
| Temp Rating | Max. 120 ºc |
| Range | Max. 3 Meters |
APPLICATION
Chemical, , Pharmaceutical, , Water / Waste Water / Effluent treatment plants, cooling / Lubricating / Filtration systems, Liquid sewerage tanks, , Chemical reactors etc.

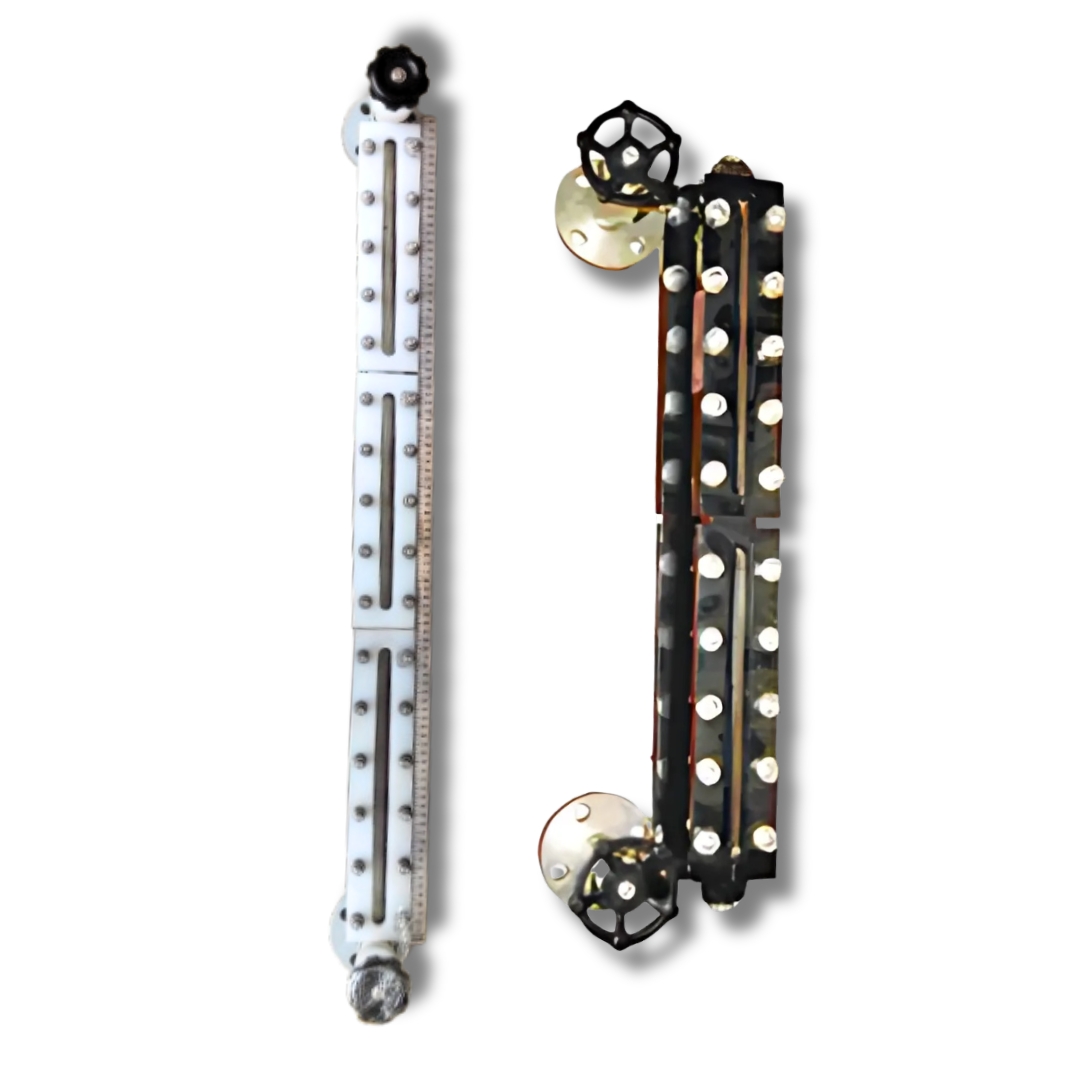

Reflex & Transparent Level Gauge Series LG33
Reflex Gauges are designed specially to meet most critical requirements of petrochemical, Fertilizer, Pharmaceutical & Chemical Industries Involving inflammable toxic, High Pressure, High temperature liquids. Inner surface of glass has reflecting Prisms. Liquid Levels shows black in contrast to mirror like surface above. .
SPECIFICATION
| MOC | M.S. /S.S.304/S.S.316 /PP |
| Cover plate | C.S/M.S/S.S. |
| Glass | Borosilicate |
| Packing | Teflon |
| Valve body | M.S. /S.S. 304/ S.S.316 |
| Press rating | 100 kg/cm |
| Temp | 200° C |
| Range | 0-2 meter. |
| Available Sizes | with Non IBR & IBR Certificates |
APPLICATION
Suitable for high temp & press application & corrosive, colourless liquid under critical conditions
