FLOAT OPERATED MAGNETIC LEVEL SWITCH (SERIES MLS 20)

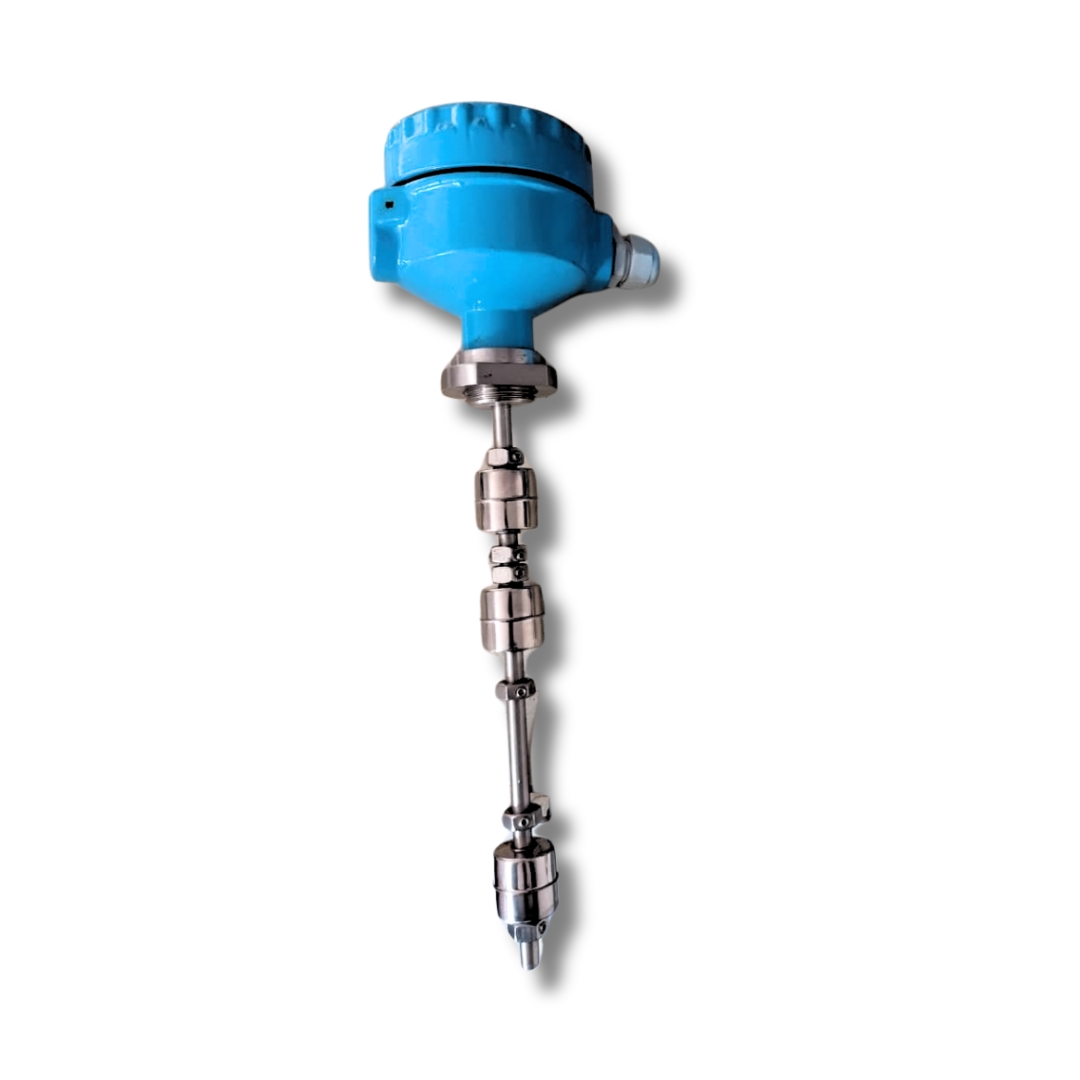

TOP MOUNTED MAGNETIC LEVEL SWITCH MODEL MLS 20 –TM
Simple Magnetic proven design Float moves up & down on Probe according to Liquid Level and Fixed limit switches inside the probe change their contacts by magnetic attraction.
Specification
| Wetted part | SS304, SS316, PP, PVC, PTFE Coating |
| Process Connection | Flanged / Screwed |
| Enclosure | Weather proof / Flame proof |
| Switch | Micro/ Read rating 5 Amps. , 230VAC |
| Contact | NO/NC (Potential Free) |
| Temperature | 150ºC max |
| Pressure | 20 kg/cm² max |
Application: water, oil, chemical, solvent etc
Features
High / Low Level Alarm
Automatic Pump Control
Safety Inter Locks Circuits
Solenoid Valve Control.
Prevention of Tank overflows
Pump safeguard against dry running
Side Mounted Level Switch

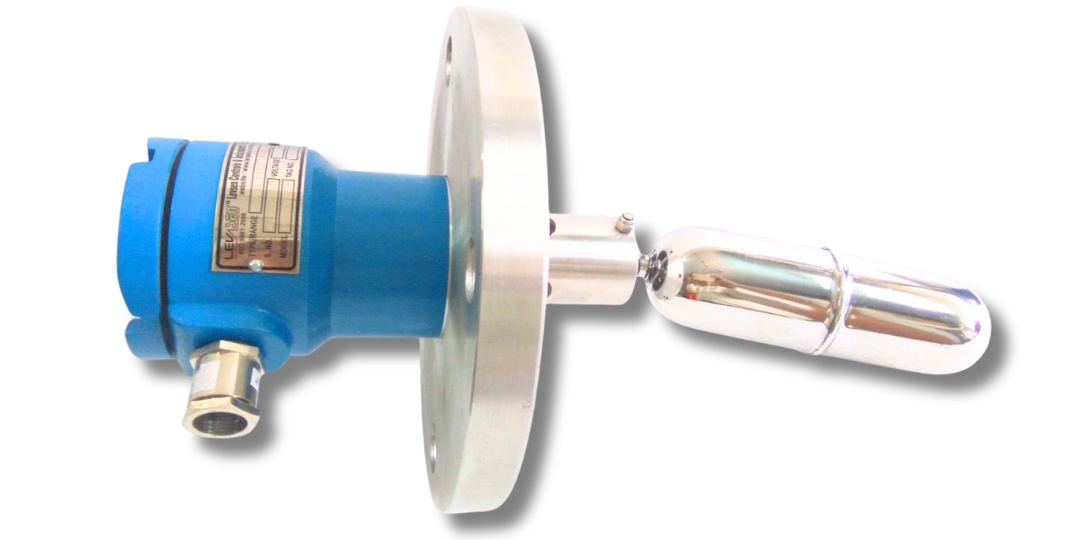

SIDE MOUNTED MAGNETIC LEVEL SWITCH (MODEL MLS 20 –SM)
Simple Magnetic proven design Float Mounted at one end of rigid rod moves with changes in level .Magnetic capsule at other end rod moves accordingly with fixed micro switch contacts across the phase change accordingly.
Specification
| Wetted part | SS304, SS316, PP, PVC, PTFE Coating |
| Process Connection | Flanged / Screwed |
| Enclosure | Weather proof / Flame proof |
| Switch | Micro/ Read rating 5 Amps. , 230VAC |
| Contact | NO/NC (Potential Free) |
| Temperature | 150ºC max. |
| Pressure | 20 kg/cm² max. |
Application: water, oil, chemical, solvent etc
Features:
High / Low Level Alarm
Automatic Pump Control
Safety Inter Locks Circuits
Solenoid Valve Control.
Prevention of Tank overflows
Pump safeguard against dry running
